ROCO™ Wood to Metal (Steel) Reamer Screws

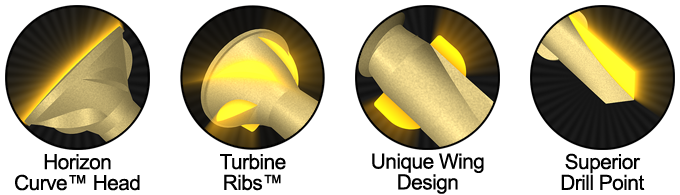

ROCO™ Wood to Metal (Steel) Screws are specifically designed for increased holding power and an incredibly clean finish. When engaging the wood, the screw effortlessly drills through the wood while the wings mill an oversize hole. When the screw engages the steel base, the oversize hole prevents the threads from engaging the wood, lifting wood and steel apart (jacking). The specially engineered drill point cuts fast through the steel base and once penetrated, the wings easily break off. The Self-Tapping Threads then tap through the steel and firmly clamp the wood and steel together. The patented Turbine Ribs™ 1 ensure an incredibly clean finish. Its cup shaped countersinking head, provides unparalleled holding power and less risk of splitting the wood. The Horizon Curve Head has been architecturally engineered to leave an elegant finish.

(1) Patent # 11,346,388 B2

General Info Detail
Type of Screw
Wood to Steel Screw
Head Style
Countersinking Star Drive
Drive Bit
TX20 / TX30
Point Type
Drill Point
Technical Evaluation Reports
N/A
Construction #10 #12 #14
Head diameter (inch)
.350
.386
.488
Minor thread diameter
.138
.161
.192
Major thread diameter
.186
.212
.246
Shaft diameter
Full Thread
Full Thread
Full Thread
Drive Size
TX20
TX20
TX30
Fastener Drill Capacity Wood Thickness
#10 Drill Point #3
Min
Max
Max
10 X 1-1/2″
0.059″
0.197″
0.71″
#12 Drill Point #3
Min
Max
Max
12 X 2″
0.059″
0.236″
1.10″
12 X 2-1/2″
0.059″
0.236″
1.69″
#14 Drill Point #4
Min
Max
Max
14 X 2-3/4″
0.138″
0.315″
1.69″
14 X 3-3/4″
0.138″
0.315″
2.68″

Steel & Coatings

ZYTEC™ GX For General Exterior

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

Additional Info & Downloads
