EPIC™ Trim Head Wood Screw - Star Drive

The EPIC™ Trim Head Screw is designed to take wood screws to an entire new level.

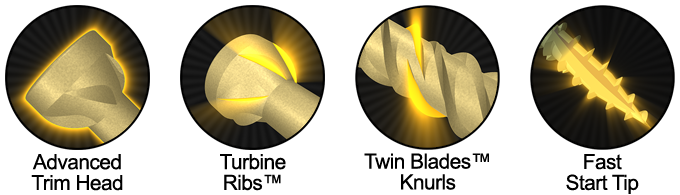

Our extra sharp Fast Start Tip saves you time onsite and our Twin Blades™ outperform the competitor’s knurls.

The Self-Tapping Thread cuts effectively through materials such as wood, plastic and sheet metal.

The Turbine Ribs™ ensure an incredibly clean finish. Its cup shaped, countersinking head provides unparalleled holding power and less risk of splitting.

The small Trim Head provides a clean, professional connection.

General Info Detail
Type of Screw
Trim Head Wood Screw
Head Style
Countersinking Star Drive
Drive Bit
TX20
Point Type
Modified Type 17
Technical Evaluation Reports
DrJ TER 2212-01 (ZYTEC XT)
Construction #9
Head diameter (inch)
.260
Minor thread diameter
.122
Major thread diameter
.183
Shaft diameter
.136
Drive Size
TX20

Steel & Coatings:

ZYTEC™ XT For General Exterior

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

ZYTEC™ XT – White Head

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

Stainless Steel AISI 316

316 Stainless Steel is code compliant for use in marine environments with saltwater splash, airborne salts, and areas with de-icing salts.

Stainless Steel

Unless notated, our stainless steel is either AISI 302, 304 or 305 and is code compliant for use with ground contact pressure treated lumber in wet environments such as near freshwater lakes and rivers, and for use in redwood and cedar.
