PICO™ Finish Head Screw - Star Drive

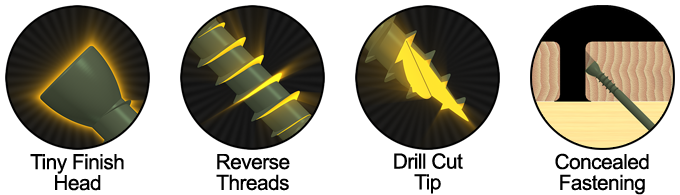

The PICO™ Finish Screw is a slim fastener, yet engineered for good holding power.

Our extra sharp Drill Cut Tip cut wood fibers and reduces splitting of board edges.

The Self-Tapping Thread cuts effectively through materials such as wood, plastic and sheet metal.

The Wide Threads provide a strong connection while the reverse threads helps pull down fibers.

The Tiny Head stays out of sight for a clean, professional finish. Fits with most concealed mounting tools.

General Info Detail
Type of Screw
Finish Head Wood Screw
Head Style
Countersinking Star Drive
Drive Bit
TX15
Point Type
Drill Cut
Technical Evaluation Reports
DrJ TER 2212-01 (ZYTEC GX)
Construction #8
Head diameter (inch)
.189
Minor thread diameter
.106
Major thread diameter
.165
Shaft diameter
.122
Drive Size
TX15

Steel & Coatings:

ZYTEC™ GX For General Exterior

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

ZYTEC™ GX – White Head

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

Stainless Steel AISI 316

316 Stainless Steel is code compliant for use in marine environments with saltwater splash, airborne salts, and areas with de-icing salts.

Stainless Steel

Unless notated, our stainless steel is either AISI 302, 304 or 305 and is code compliant for use with ground contact pressure treated lumber in wet environments such as near freshwater lakes and rivers, and for use in redwood and cedar.

Additional Info & Downloads
