NOVA™ Structural Lag Screw - Star Drive

NOVA™ Structural Lag Screws are the superior lag screw for any of your projects.

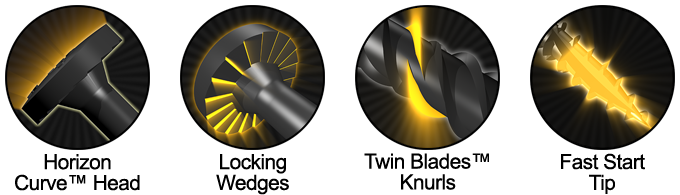

With a strong thread that ensures maximum withdrawal strength and a Fast Start Tip that easily grips and cuts its way through the wood, you will feel the power and quality of the NOVA.

The Self-Tapping Thread cuts effectively through materials such as wood, plastic and sheet metal.

The patented Twin Blade Knurls1 ensure minimum friction on the shank and the Locking Wedges under the head countersink perfectly with maximum wood contact.

General Info Detail
Type of Screw
Structural Lag Screw
Head Style
Low Profile Star Drive
Drive Bit
TX30 / TX40
Point Type
Modified Type 17
Technical Evaluation Reports
DrJ TER 2010-03 (ZYTEC GX)
Construction #14 #16 #18
Head diameter (inch)
.531
.630
.728
Minor thread diameter
.156
.181
.209
Major thread diameter
.246
.283
.315
Shaft diameter
.173
.205
.226
Drive Size
TX30
TX30
TX40

Steel & Coatings:

ZYTEC™ GX For General Exterior

Tested and recognized for use in most ground contact pressure treated lumber for general exterior construction as described by the American Wood Protection Association (AWPA) U1 UC4A or below.

Stainless Steel AISI 316

316 Stainless Steel is code compliant for use in marine environments with saltwater splash, airborne salts, and areas with de-icing salts.
